Also known as:Fiber Raceway / Optical Fiber Channel
Our ABS Plastic Fiber Raceway is a lightweight, durable, and non-conductive solution for organizing and protecting sensitive fiber optic, data, and low-voltage communication cables. Made from high-impact ABS plastic, it features a smooth interior to prevent cable abrasion, a snap-on cover for easy access, and excellent insulating properties. It is ideal for clean, organized cable routing in offices, data centers, telecom rooms, and commercial interiors.
Key Features & Benefits:
Lightweight & Non-Conductive: Safe for use around electrical equipment, eliminating risks of short circuits. Easy to handle and install.
Impact Resistant & Durable: Made from tough ABS plastic that resists cracking, chipping, and corrosion, ensuring long-term reliability.

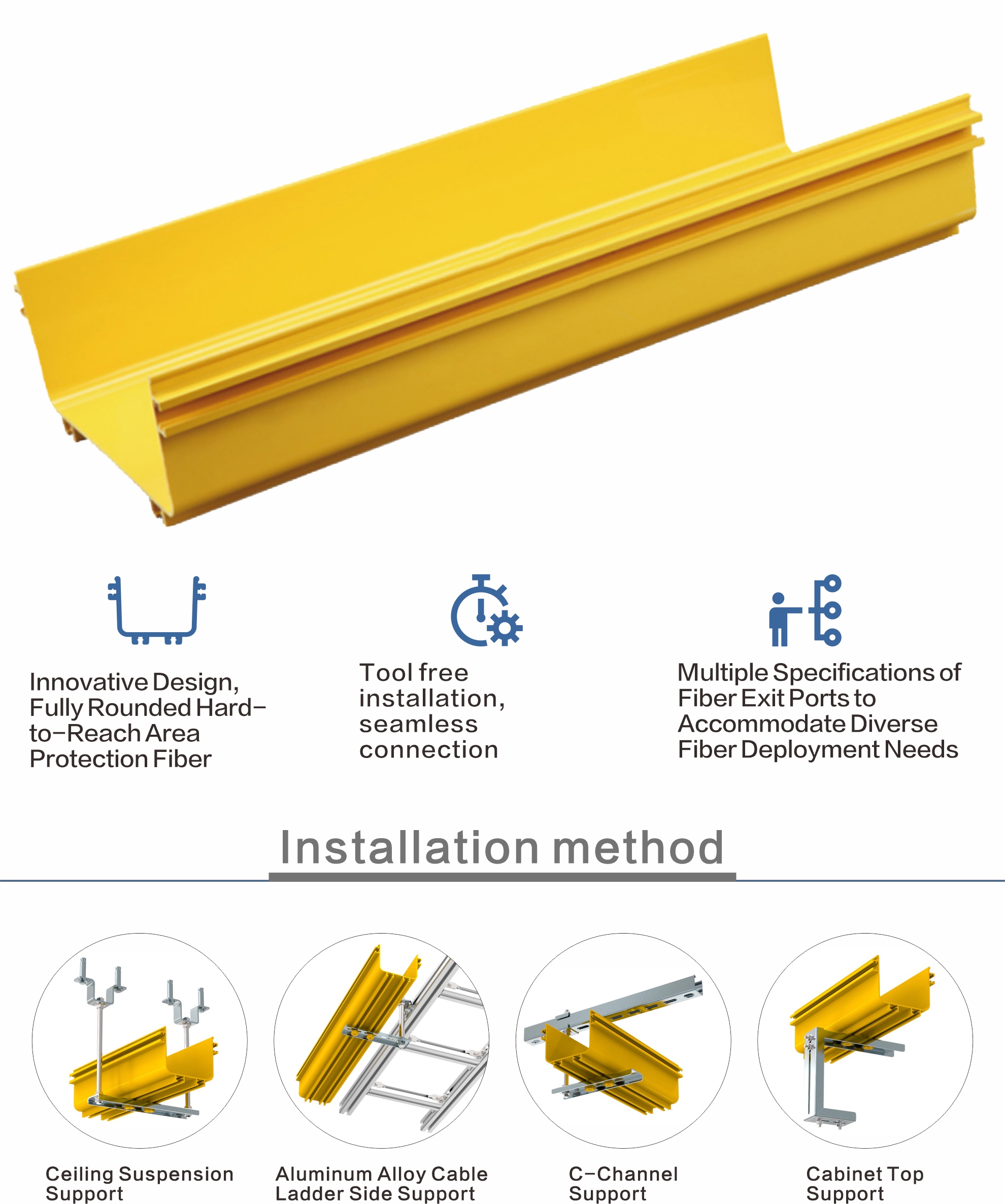

Easy Installation & Access: Features a snap-lock or hinge-lid design that allows for quick cable laying, inspection, and modifications without tools.
Smooth & Protective: Smooth inner surface protects delicate fiber optic and data cables from scratches and damage during installation and use.
Clean Aesthetics: Available in neutral colors (white, gray, beige) to blend discreetly into walls, ceilings, and furniture.
Flame Retardant: Typically complies with flame-retardant standards (e.g., UL 94V-0) for enhanced safety.
Technical Specifications:
|
Item |
Specification |
|---|---|
|
Material |
High-Impact ABS Plastic (UV Resistant optional) |
|
Color |
White, Gray, Black (Standard) |
|
Size (W x H) |
20x10mm, 40x20mm, 60x30mm, 80x40mm, 100x50mm (Common) |
|
Cover Type |
Snap-on, Hinged, or Slotted |
|
Mounting |
Adhesive backing or screw-fixing options |
|
Flame Rating |
UL 94V-0 (Standard) |
|
Features |
May include self-adhesive backing, separator slots |
Typical Applications:
Fiber Optic & Network Cable Management
Office Workstation & Furniture Wiring
Telecom & Server Room Trunking
CCTV & Security System Cabling
Home & Building Automation
Concealing wires along walls, ceilings, and under floors
